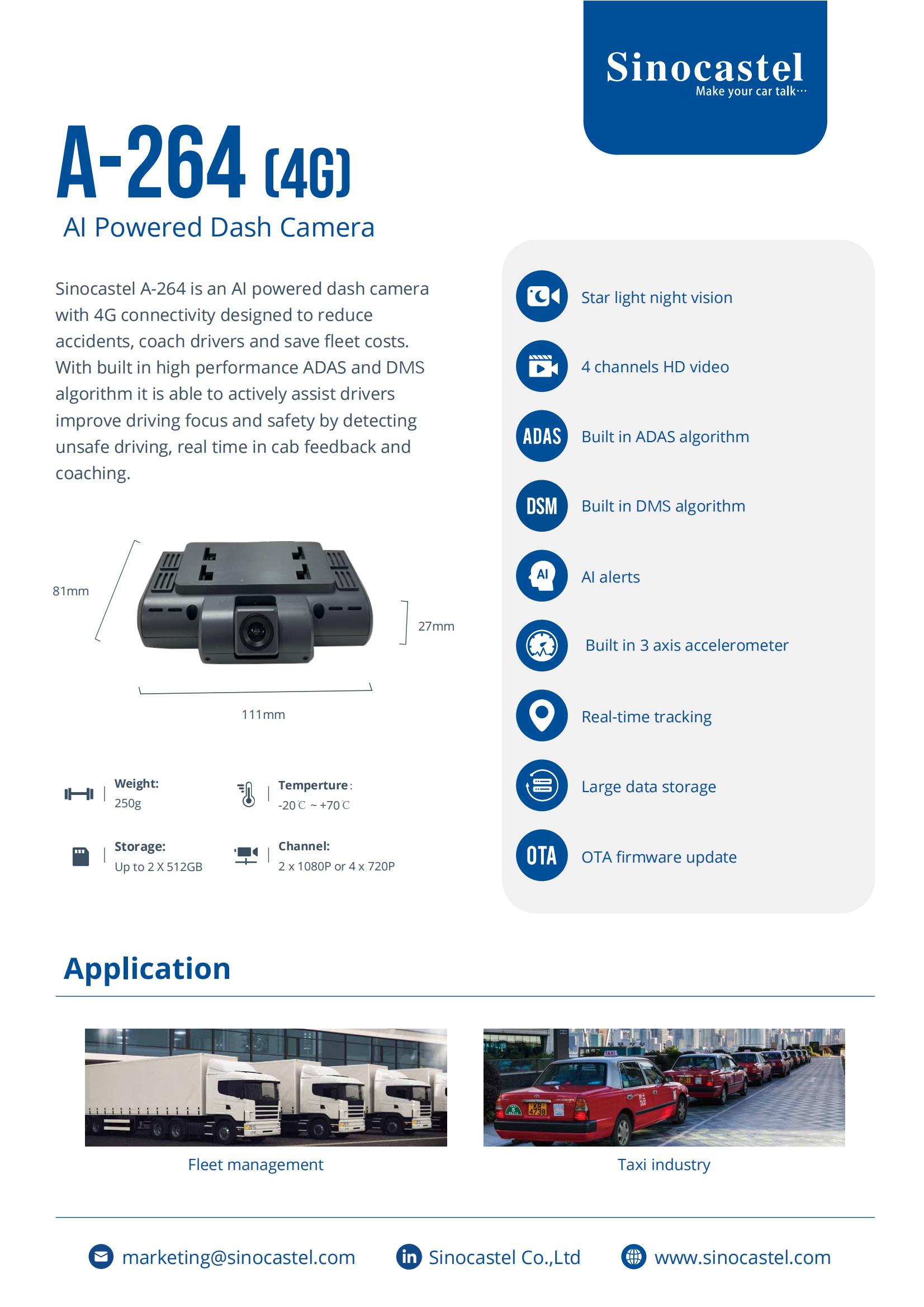

4G Dashcam A – 264 ( AI ) with ADAS and DMS Algorithm
A – 264 ( AI )
A – 264 ( AI ) is an AI powered dash camera with 4G connectivity designed to reduce accidents, coach drivers and save fleet costs. With built in high performance ADAS and DMS algorithm it is able to actively assist drivers improve driving focus and safety by detecting unsafe driving, real time in cab feedback and coaching.
- Star light night wision
- 4 channels HD video
- Built in ADAS algorithm
- Built in DMS algorithm
- Al alerts
- Built in 3 axis accelerometer
- Real-time tracking
- Large data storage
- OTA firmware update

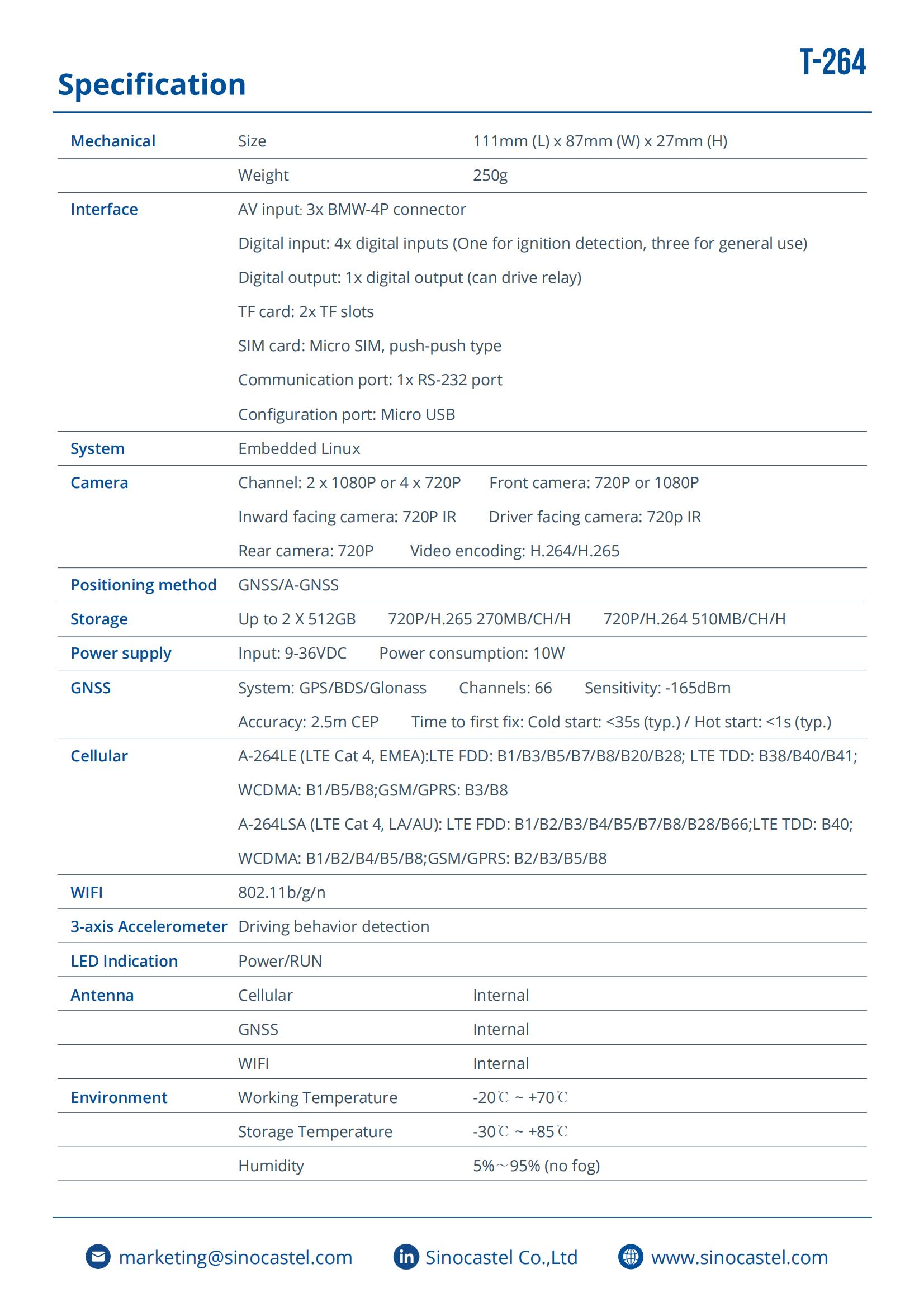

| Mechanical | Size | 111mm (L) x 87mm (W) x 27mm (H) | |
| Weight | 250g | ||
| Interface | AV input | 3x BMW-4P connector | |
| Digital input | 4x digital inputs | ||
| One for ignition detection, three for general use | |||
| Digital output | 1x digital output (can drive relay) | ||
| TF card | 2x TF slots | ||
| SIM card | Micro SIM, push-push type | ||
| Communication port | 1x RS-232 port | ||
| Configuration port | Micro USB | ||
| System | Embedded Linux | ||
| Camera | Channel | 2 x 1080P or 4 x 720P | |
| Front camera | 720P or 1080P | ||
| Inward facing | 720P IR | ||
| camera | |||
| Driver facing | 720p IR | ||
| camera | |||
| Rear camera | 720P | ||
| Video encoding | H.264/H.265 | ||
| Positioning method | GNSS/A-GNSS | ||
| Storage | Up to 2*512GB | ||
| 720P/H.265 270MB/CH/H | |||
| 720P/H.264 510MB/CH/H | |||
| Power supply | Input | 9-36VDC | |
| Power consumption | 10W | ||
| GNSS | System: GPS/BDS/Glonass | ||
| Channels: 66 | |||
| Sensitivity: -165dBm | |||
| Accuracy: 2.5m CEP | |||
| Time to first fix: | |||
| Cold start: <35s (typ.) | |||
| Hot start: <1s (typ.) | |||
| Cellular | A-264LE (LTE Cat 4, EMEA) | ||
| LTE FDD: B1/B3/B5/B7/B8/B20/B28 | |||
| LTE TDD: B38/B40/B41 | |||
| WCDMA: B1/B5/B8 | |||
| GSM/GPRS: B3/B8 | |||
| A-264LSA (LTE Cat 4, Latin America/Australia) | |||
| LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 | |||
| LTE TDD: B40 | |||
| WCDMA: B1/B2/B4/B5/B8 | |||
| GSM/GPRS: B2/B3/B5/B8 | |||
| WIFI | 802.11b/g/n | ||
| 3-axis Accelerometer | Driving behavior detection | ||
| LED Indication | Power/RUN | ||
| Antenna | Cellular | Internal | |
| GNSS | Internal | ||
| WIFI | Internal | ||
| Environment | Working Temperature | -20℃ ~ +70℃ | |
| Storage Temperature | -30℃ ~ +85℃ | ||
| Humidity | 5%～95% (no fog) | ||
- Car insurance
- Car 4s shop
- Car maintain shop
- Taxi industry
DMS
DMS (Driver Monitoring System) monitors the driver’s facial features, behavior and concentration in real time through in-car cameras and artificial intelligence algorithms, effectively identify and intervene in driving behaviors that may lead to danger.
ADAS
ADAS (Advanced Driver Assistance System) mainly uses external cameras to perceive the environment around the vehicle in real time and predict and warn of potential dangers.
Synergy between DMS and ADAS
The two functions of DMS and ADAS focus on driver status and external environment perception respectively, but they do not exist in isolation.
Instead, they form a synergistic effect to provide more comprehensive safety protection for driving behavior.
