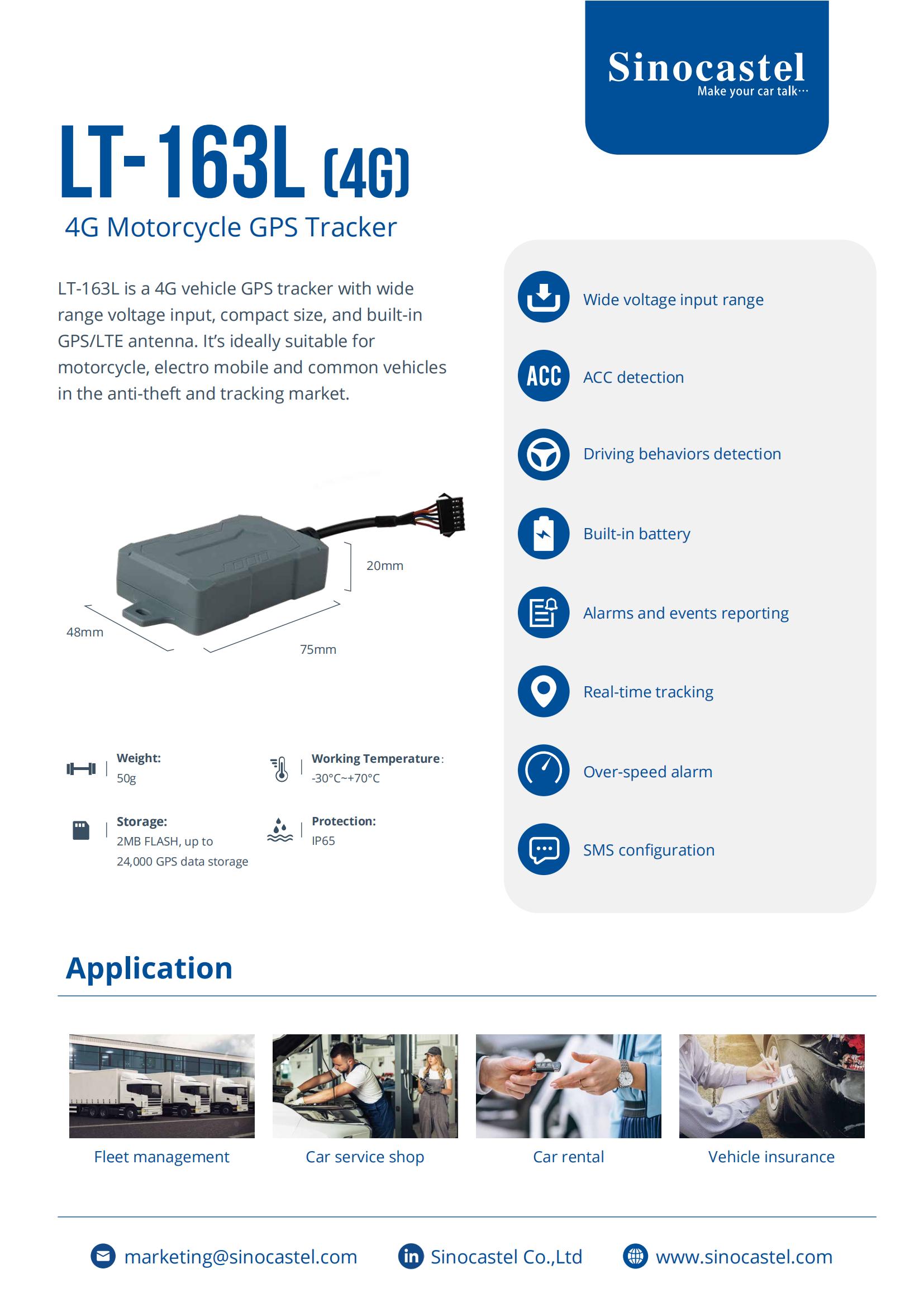

Intelligent on-board Tracking Device
LT – 163
LT – 163 is an intelligent on-board tracking device suitable for any vehicles or motorcycles,it integrates the latest CAT1 technology to transform LTE for IoV market. It could capture location data and send them to backend server for real-time tracking purpose.
Products Categories
Get A Free Quote
- Wide voltage input range
- Acc detection
- Driving behaviors detection
- Built-in battery
- Alarms and events reporting
- Real-time tracking
- Over-speed alarm
- SMS configuration

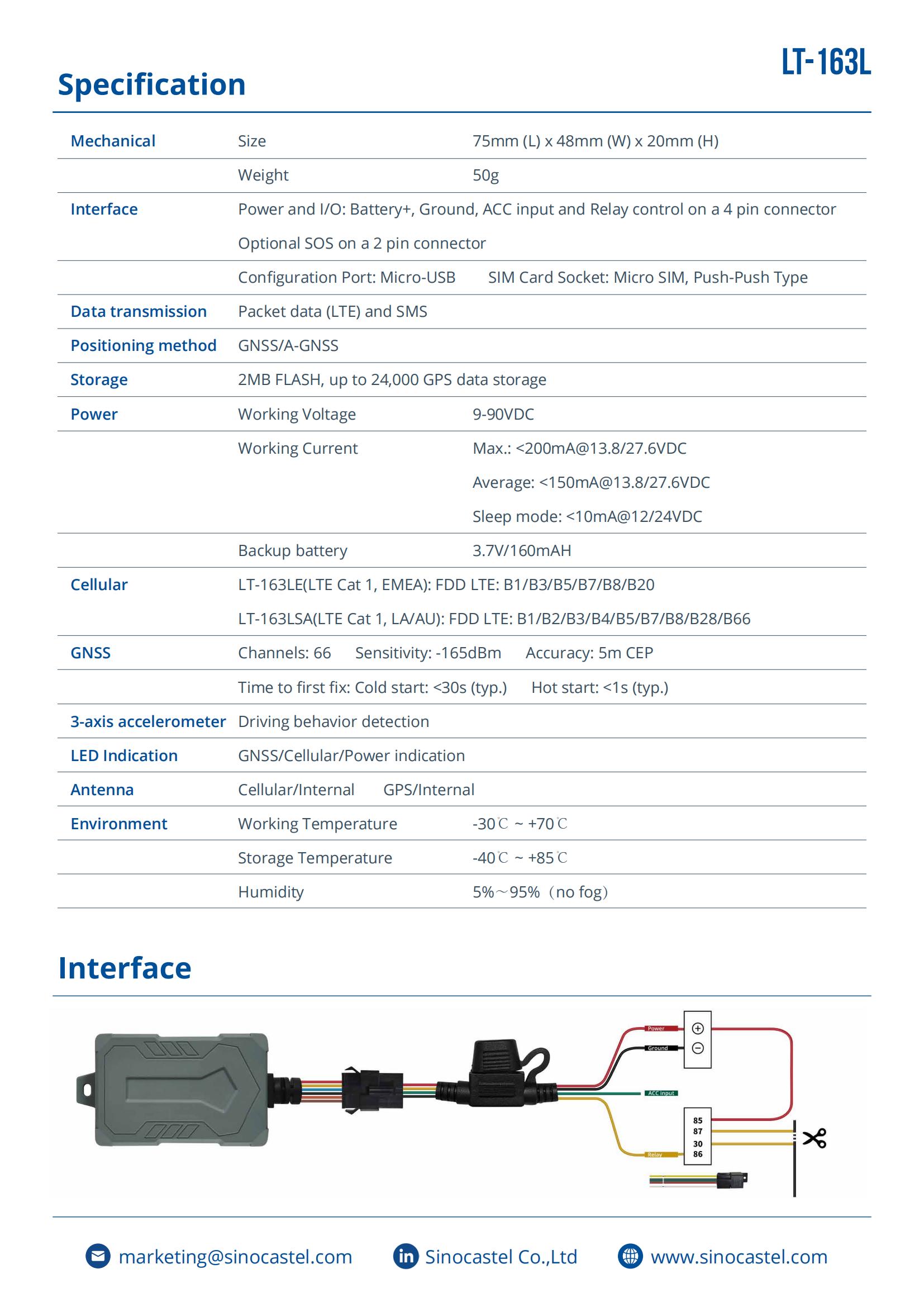

| Mechanical | Size | 75mm (L) x 48mm (W) x 20mm (H) |
| Weight | 50g | |
| Protection | IP65 | |
| Interface | Power and I/O | Battery+, Ground, ACC input and Relay control |
| on a 4 pin connector | ||
| Optional SOS on a 2 pin connector | ||
| Configuration Port | Micro-USB | |
| SIM Card Socket | Micro SIM, Push-Push Type | |
| Data transmission | Packet data (LTE) and SMS | |
| Positioning method | GNSS/A-GNSS | |
| Storage | 2MB FLASH, up to 24,000 GPS data storage | |
| Power | Working Voltage | Max.: <[email protected]/27.6VDCAverage: <[email protected]/27.6VDC |
| Backup battery | 3.7V/160mAH | |
| GNSS | Channels: 66 | |
| Sensitivity: -165dBm | ||
| Accuracy: 5m CEP | ||
| Time to first fix: | ||
| Cold start: <30s (typ.) | ||
| Hot start: <1s (typ.) | ||
| Cellular | Frequency: | |
| LT-163LE (EMEA): | ||
| FDD LTE B1/B3/B5/B7/B8/B20 | ||
| GSM/GPRS/EDGE 900/1800MHz | ||
| LT-163LSA (Australia/LatinAmerica): | ||
| FDD LTE B1/B2/B3/B4/B5/B7/B8/B28/B66 | ||
| GSM/GPRS/EDGE 850/900/1800/1900MHz | ||
| Data: | ||
| LTE: | ||
| 5Mbps max (UL) | ||
| 10Mbps max(DL) | ||
| EDGE: | ||
| UL/DL up to 236.8Kbps | ||
| GPRS: | ||
| UL/DL up to 85.6Kbps | ||
| Network protocol: Embedded TCP/IP stack | ||
| 3-axis accelerometerk | Driving behavior detection℃ | |
| LED Indication | GNSS/Cellular/Power indication | |
| Antenna | Cellular | Internal |
| GPS | Internal | |
| Environment | Working Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Humidity | 5%～95%（no fog） |
- Fleet management,
- Vehicle tracking
- Car rental
- Car 4S stores
- Car insurance
